Replace lock-on bike handlebar grips

Swap a worn pair of lock-on grips without disturbing the brake or gear controls.

Every step has an illustration. Follow the written instructions and safety notes as your guide.

A lock-on bicycle handlebar grip being fitted beside the controls

Take it one step at a time

Repair steps

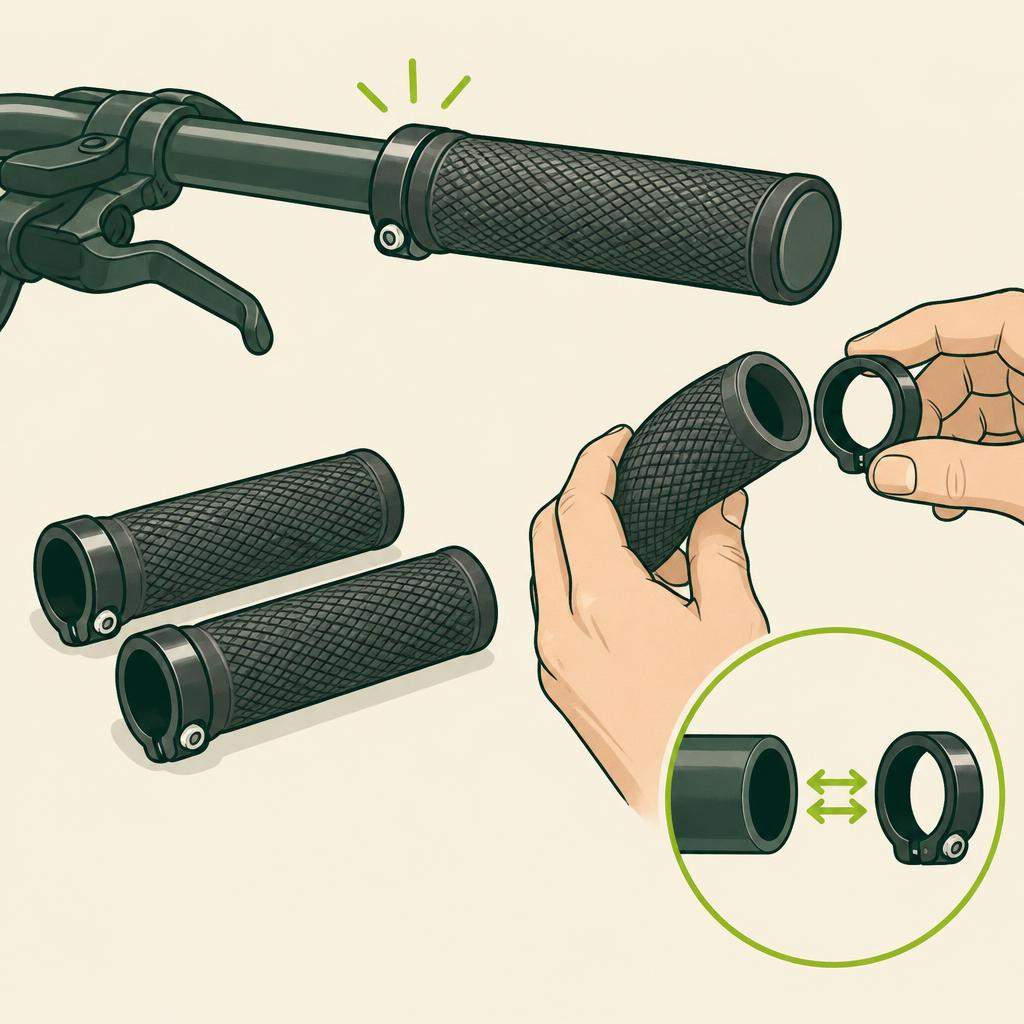

  1. Step 1

    Confirm the grips use lock rings and choose replacements that match the handlebar diameter.

    Illustration for Replace lock-on bike handlebar grips, step 1

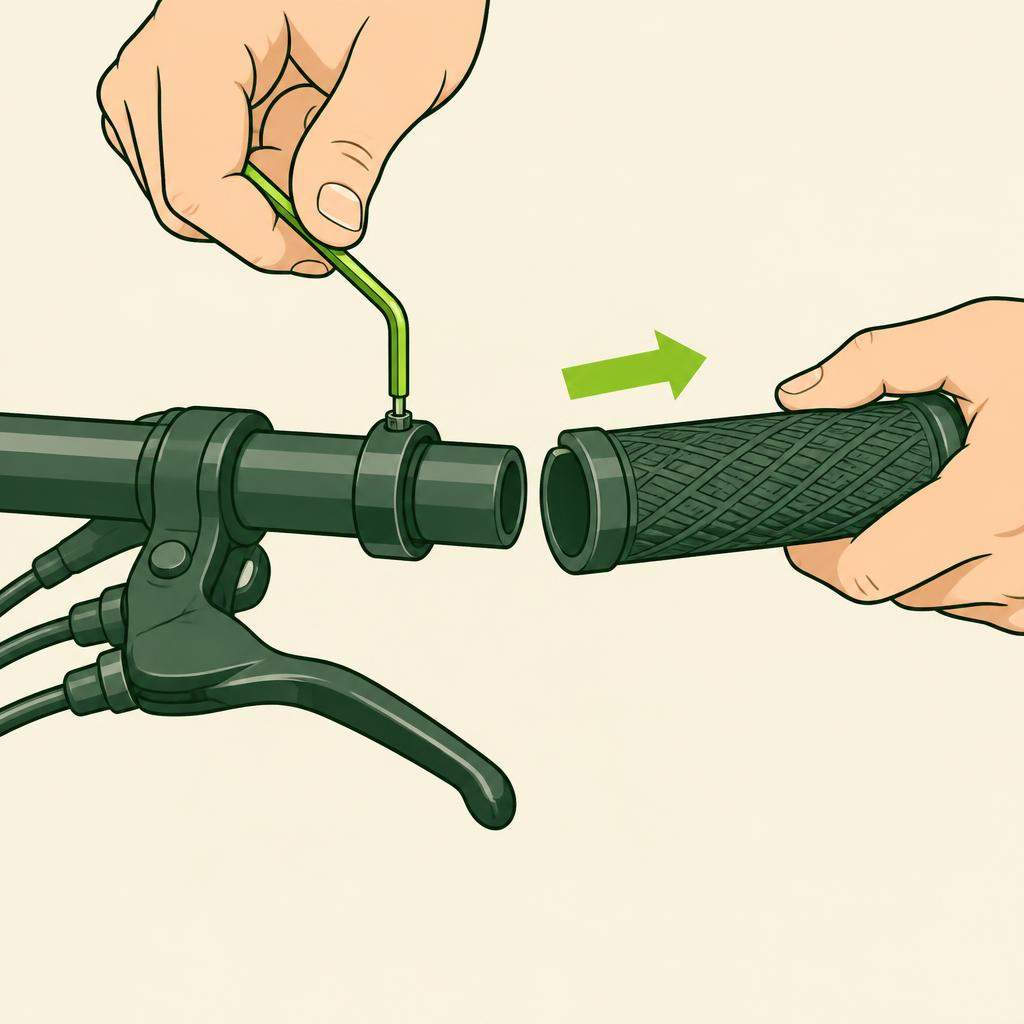

  2. Step 2

    Loosen the grip end rings with the correct hex key and slide the old grips straight off.

    Illustration for Replace lock-on bike handlebar grips, step 2

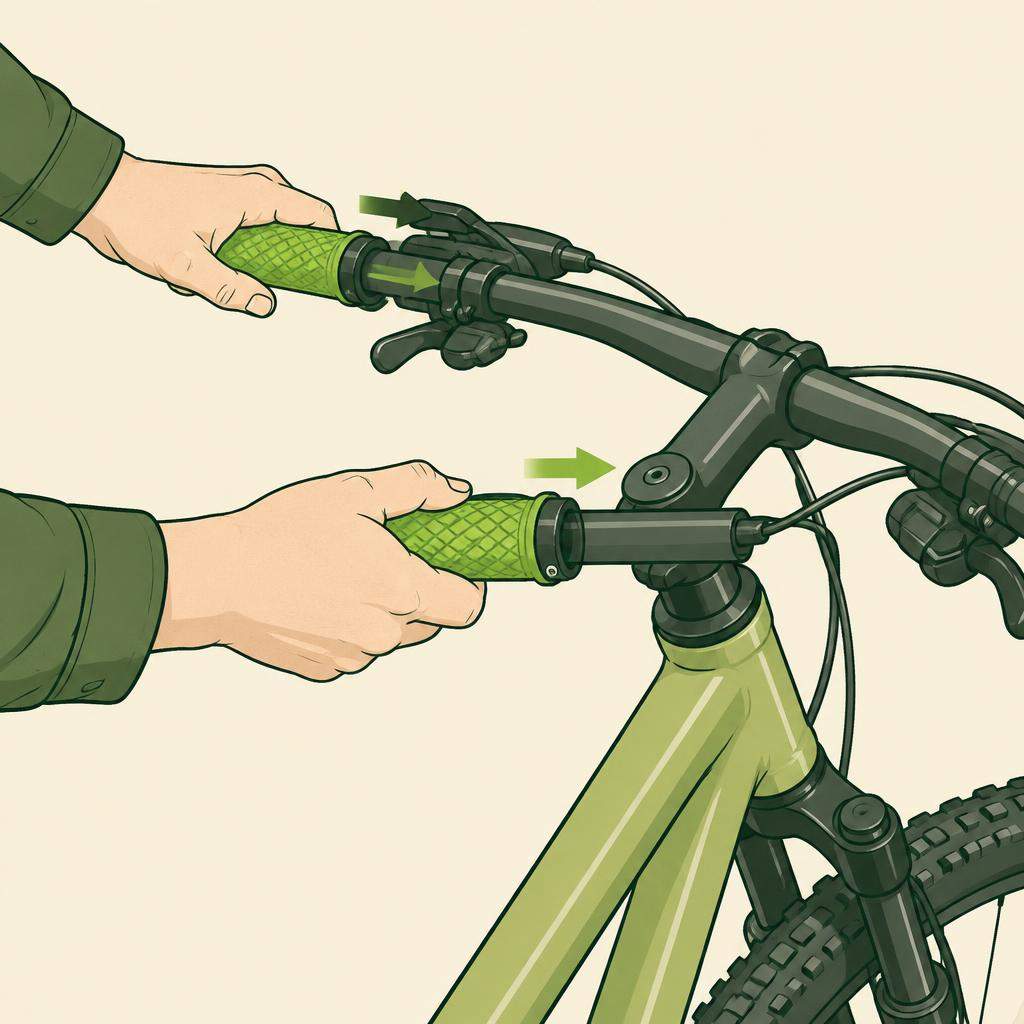

  3. Step 3

    Slide each new grip fully onto the bar, leaving the brake levers and shifters in their original position.

    Illustration for Replace lock-on bike handlebar grips, step 3

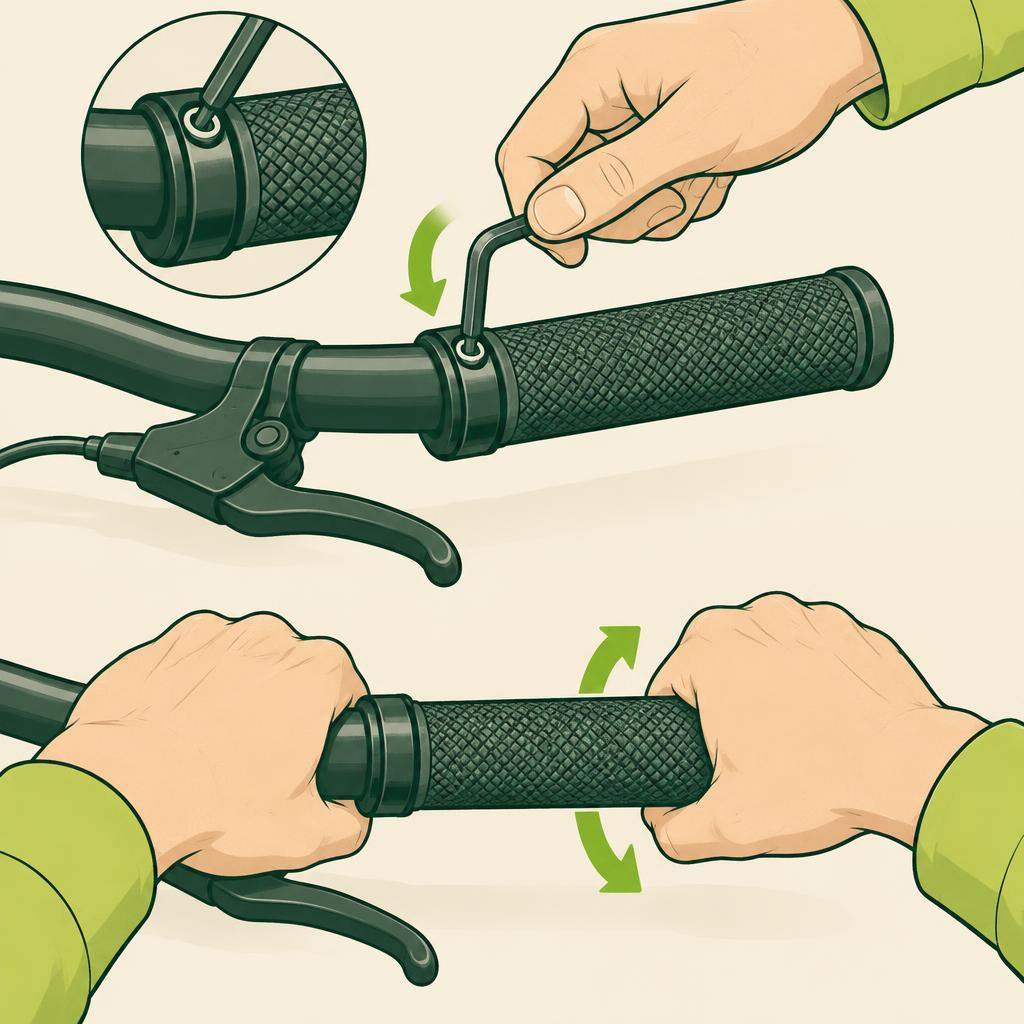

  4. Step 4

    Tighten the lock rings to the maker’s instructions, then twist each grip firmly to check that it cannot move.

    Illustration for Replace lock-on bike handlebar grips, step 4
